External Pressure Sensor

The External Pressure Sensors are used with the Wave Gauge Blue Pressure Sensor Array option. They are submersible pressure sensors designed to link to the Wave Gauge Blue for directional wave measurements. They are powered by the Wave Gauge Blue’s Battery Pack. The data link is a daisy chain RS485. The Pressure Sensors are identical to that of the Wave Gauge Blue’s Pressure Sensor.

All Features of wave gauge blue with sensor

Core Features combined with Wave Gauge Blue

Array-Based Directional Wave Measurement:

By using multiple synchronized sensors to detect the wave direction through tiny timing differences in water pressure changes.

Seamless Integration with Wave Gauge Blu

function as a plug-and-play extension, using identical hardware and shared power and communication for a single, unified system.

Submersible Design

Built for continuous deployment on the seafloor to withstand prolonged exposure to underwater pressure and corrosive environments.

Daisy-Chain RS485 Data Link

Connects all sensors in a simple, robust series using a single communication cable, ideal for long-distance underwater arrays.

Product Application With Wave Gauge Blue

Determine the product's adherence to your specifications.

Coastal wave monitoring

Tracking wave activity and conditions directly at the shoreline.

Oceanographic Wave Monitoring

Tracking wave dynamics and energy across the open ocean.

Tidal and wave measurement

Monitoring the rhythm of the sea's levels and surface motion.

Water level tracking in lakes, tanks, and reservoirs

Monitoring water height and volume in contained bodies.

Research and environmental monitoring

Systematic study and observation to understand and protect the environment.

Long-term autonomous deployments

Unattended, long-duration data collection in the field.

External Pressure Sensors — Wave Gauge Blue

Technical Overview and Specifications

Description	The External Pressure Sensors are precision, submersible transducers designed to operate with the Wave Gauge Blue Pressure Sensor Array option. These sensors extend the Wave Gauge Blue’s capability for directional and spatial wave measurements, capturing accurate subsurface pressure data for comprehensive wave height and directional analysis.
Design and Construction	Each sensor employs a piezoresistive pressure sensing element housed in marine-grade 316L stainless steel or optional titanium for superior corrosion resistance. The sensors are fully sealed and rated for continuous submersion in ocean, coastal, or freshwater environments.
Data & Power Interface	Communication and power are managed through a daisy-chain RS485 link, supporting multi-drop connectivity for multiple sensors on a single bus. The Wave Gauge Blue Battery Pack provides stable 12 VDC power and data synchronization across all connected sensors.

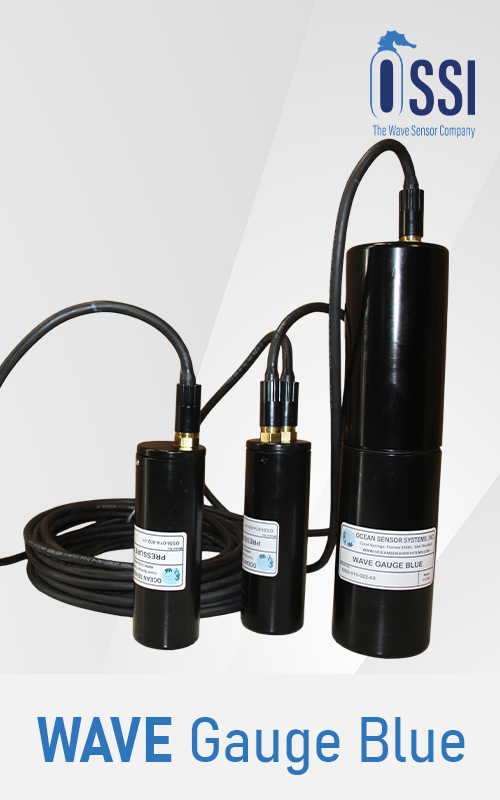

Image	Figure: External Pressure Sensor connected to Wave Gauge Blue system

Technical Specifications

Sensing Principle	Piezoresistive pressure transducer
Pressure Range	Configurable — typically 0–5 psig or 0–10 psig (custom options available)
Accuracy	±0.1% to ±0.5% Full Scale (model dependent)
Resolution	12-bit effective resolution after on-board signal conditioning
Sampling Rate	Up to 30 Hz (synchronized with Wave Gauge Blue)
Communication	RS485, half-duplex, daisy-chain compatible
Power Supply	12 VDC, supplied from Wave Gauge Blue Battery Pack
Housing Material	316L Stainless Steel (standard) / Titanium (optional)
Seal Rating	IP68 — fully submersible
Cable	Shielded marine-grade cable with waterproof connectors
Operating Temperature	-10°C to +50°C (extended range optional)
