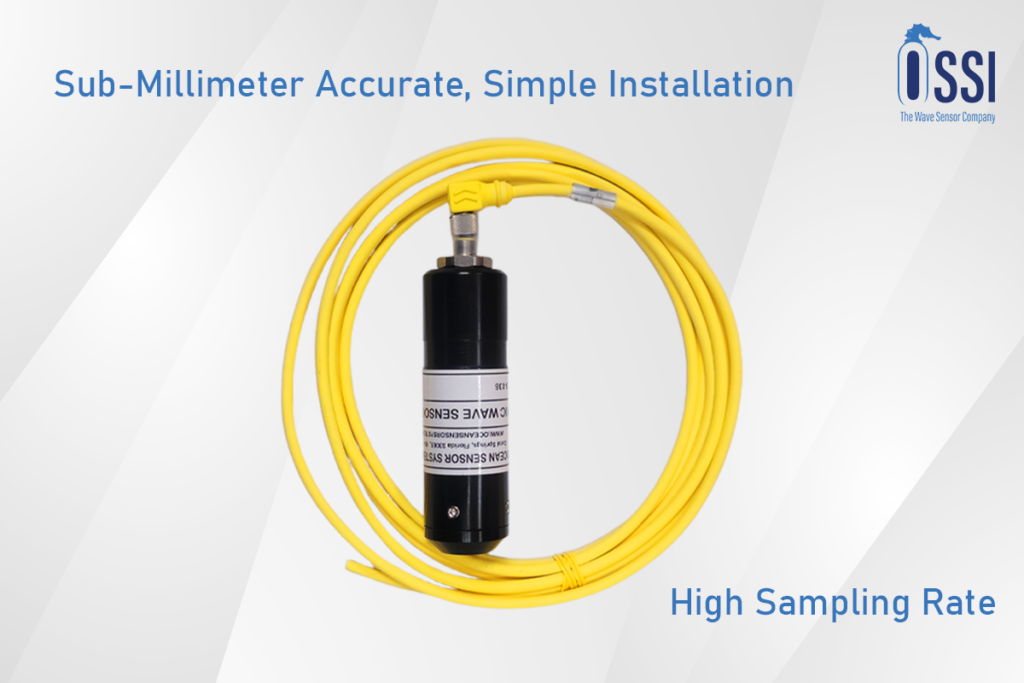

Sonic Wave Sensor RV
The OSSI-010-036 Sonic Wave Sensor RV is a water level sensor that combines a rugged IP67 resistant to water submersion package, low power microprocessor and Anti-aliasing sensing circuit. The Sonic Wave Sensor RV has a range of 2.5 meters. See Sheet 2 Wave Performance for limitations. It is powered with any external voltage from 4.5 volts to 45 volts. There are 3 versions with different signal outputs. The OSSI-010-036-2 has a RS485 output and a 0-5V analog output. The OSSI-010-036-2 has a RS232 output and a 0-5V analog output. The OSSI-010-036-3 has a RS485 output. Laptops and PCs can easily receive the Sonic Wave Sensor RV’s data using the RS232 or RS485 to USB Adaptors that are supplied. Time stamped data can be used to synchronize up to 8 Sonic Wave Sensor RVs. The Staff & Sonic Product Interface Program is available to down load from our web site to configure, display, analyze and store the sensor data.
Core Features
Product Application
Determine the product's adherence to your specifications.
OSSI-010-036 Sonic Wave Sensor RV
The Ocean Sensor Systems OSSI-010-036 Sonic Wave Sensor RV is a high-resolution instrument designed for precise, non-contact measurement of liquid surface height at sampling rates up to 32 Hz.
Measurement & Performance
| Measurement Range | Sub-millimeter to several hundred centimeters |
|---|---|
| Sampling Rate | Up to 32 Hz for detailed wave characterization |
| Measurement Principle | Ultrasonic travel-time measurement for non-contact operation |
| Calibration | Factory calibrated with specific output values at set distances |
| Synchronization | Capable of synchronized operation with up to 8 RS485 units for directional wave measurements |
Data Link & Communication
| Communication Ports | Available with either RS232 or RS485 serial communication ports |
|---|---|
| Multi-Unit Capability | RS485 version allows daisy-chaining of up to 8 units on a single cable |
| Analog Output | -1 and -2 models include a 0 to 5V analog output for use with ADC cards |
| Computer Connection | Easy connection to laptops and PCs using USB Adaptors |
| Data Features | Real-time data streaming with time-stamping capability |
Power & Input
| Operating Voltage | Wide operating range: 4V to 45V DC |
|---|---|
| Power Supply | Flexible power supply options for various deployment scenarios |
| Power Consumption | Low power consumption for continuous operation |
Construction & Deployment
| Housing | Waterproof housing requiring no special protection from spray, rain, or sun |
|---|---|
| Electronics | Solid-state electronics for enhanced durability and long-term reliability |
| Mounting Orientation | Must be mounted vertically with the sensor projecting downward towards the water |
| Clearance Requirements |
Minimum 0.25m clearance from obstructions Must be installed at least 0.2m above the highest expected water level (including waves) |
| Mounting Accessories | Specialized mounting bracket available (OSSI-015-018-B) |
Control & Operation
| Interface Software | User Interface Software (GUI) connects via Windows USB to Serial Converter driver |
|---|---|
| Data Collection | Compatible with standard serial communication software for data collection and configuration |
| Analog Signal | Analog output provides continuous voltage signal proportional to distance |
| Operation Mode | Continuous real-time measurement and data output with simple power-on operation |
Maintenance
| Maintenance Level | Minimal maintenance requirements due to robust, sealed design |
|---|---|
| Cleaning Procedure | External cleaning only, using soap, water, and a soft cloth |
| Internal Maintenance | No internal user serviceable parts |
Typical Applications
| Wave Monitoring | Intracoastal and coastal wave monitoring, wave tank research and laboratory testing |
|---|---|
| Water Level Measurement | Tide, pond, tank, and pool level measurement |
| Directional Studies | Directional wave studies using multiple synchronized RS485 units |
| Research & Industrial | Environmental monitoring, field research, and industrial tank level monitoring |
| Key Advantage | Rugged reliability with high-precision measurement for applications where wired connectivity is feasible and robust performance is critical |
Software and Manuals
User Manual
User Guide
Datasheet
Pc Interface Software
You May Also Be Interested In
Sonic Wave Sensor XB
Wave Staff III
Wave Gauge Blue
Sonic Wave Sensor XB vs RV – Comparison Table
Key differences between the wired Sonic Wave Sensor RV and wireless Sonic Wave Sensor XB models
Sonic Wave Sensor XB
OSSI-010-035
Wireless
Primary Feature
Wireless XBee protocol - no cables needed
Power Source
2 C-cell batteries
Range
Up to 2-mile wireless range
Sonic Wave Sensor RV
OSSI-010-036
Wired
Primary Feature
Wired serial communication - RS232/RS485
Power Source
4-45V external power
Analog Output
0-5V analog available
Product Overview
| Feature | Sonic Wave Sensor XB (OSSI-010-035) | Sonic Wave Sensor RV (OSSI-010-036) |
|---|---|---|
| Product Type | Wireless Sonic Sensor WIRELESS | Wired Sonic Sensor WIRED |
Product Overview
Product Type
Sonic Wave Sensor XB
OSSI-010-035
Wireless Sonic Sensor
Sonic Wave Sensor RV
OSSI-010-036
Wired Sonic Sensor
Connectivity & Communication
| Primary Communication | Wireless XBee protocol - no cables needed | Wired serial communication - RS232 or RS485 |
|---|---|---|
| Adapter Options | XBee USB/RS232 Adapters with up to 2-mile range | RS485/USB or RS232/USB Adapters - direct cable connection |
| Network Capability | Wireless mesh network - flexible deployment | Daisy-chain capability - up to 8 units on RS485 |
| Synchronization | Time-stamped data for up to 8 units | Time-stamped data for up to 8 units |
Connectivity & Communication
Primary Communication
Sonic Wave Sensor XB
Wireless XBee protocol - no cables needed
Sonic Wave Sensor RV
Wired serial communication - RS232 or RS485
Adapter Options
Sonic Wave Sensor XB
XBee USB/RS232 Adapters with up to 2-mile range
Sonic Wave Sensor RV
RS485/USB or RS232/USB Adapters - direct cable connection
Network Capability
Sonic Wave Sensor XB
Wireless mesh network - flexible deployment
Sonic Wave Sensor RV
Daisy-chain capability - up to 8 units on RS485
Synchronization
Sonic Wave Sensor XB
Time-stamped data for up to 8 units
Sonic Wave Sensor RV
Time-stamped data for up to 8 units
Power System
| Power Source | 2 C-cell batteries - Alkaline, NiMH, or Lithium options | 4-45V external power - wide voltage range |
|---|---|---|
| Battery Life | Months of operation with sleep modes | Continuous external power - no battery limitations |
| Power Options | Standard (1.8-3.3V) or Option -L (4.2-10V for Lithium) | 4-45V DC external supply |
Power System
Power Source
Sonic Wave Sensor XB
2 C-cell batteries - Alkaline, NiMH, or Lithium options
Sonic Wave Sensor RV
4-45V external power - wide voltage range
Battery Life
Sonic Wave Sensor XB
Months of operation with sleep modes
Sonic Wave Sensor RV
Continuous external power - no battery limitations
Power Options
Sonic Wave Sensor XB
Standard (1.8-3.3V) or Option -L (4.2-10V for Lithium)
Sonic Wave Sensor RV
4-45V DC external supply
Key Selection Criteria:
- Choose Sonic Wave Sensor XB for: Wireless deployment, remote locations, battery operation, flexible installation without cables
- Choose Sonic Wave Sensor RV for: Wired applications, continuous power availability, analog output requirements, daisy-chained multi-unit systems
- Both models offer: High-resolution measurement, 32Hz sampling, waterproof construction, and synchronization capabilities
