OSSI-010-025 Wave Staff XB – Product Description
The Ocean Sensor Systems OSSI-010-025 Wave Staff XB is a high-resolution, wireless instrument designed for direct-contact measurement of liquid surface height at sampling rates up to 32 Hz, ideal for waves, wakes, tides, and water level monitoring.
Measurement & Performance
| Measurement Principle | Capacitance sensing between sensor staff and water |
|---|---|
| Sampling Rate | Up to 32 Hz |
| Staff Length Options | 0.5 to 20 meters |

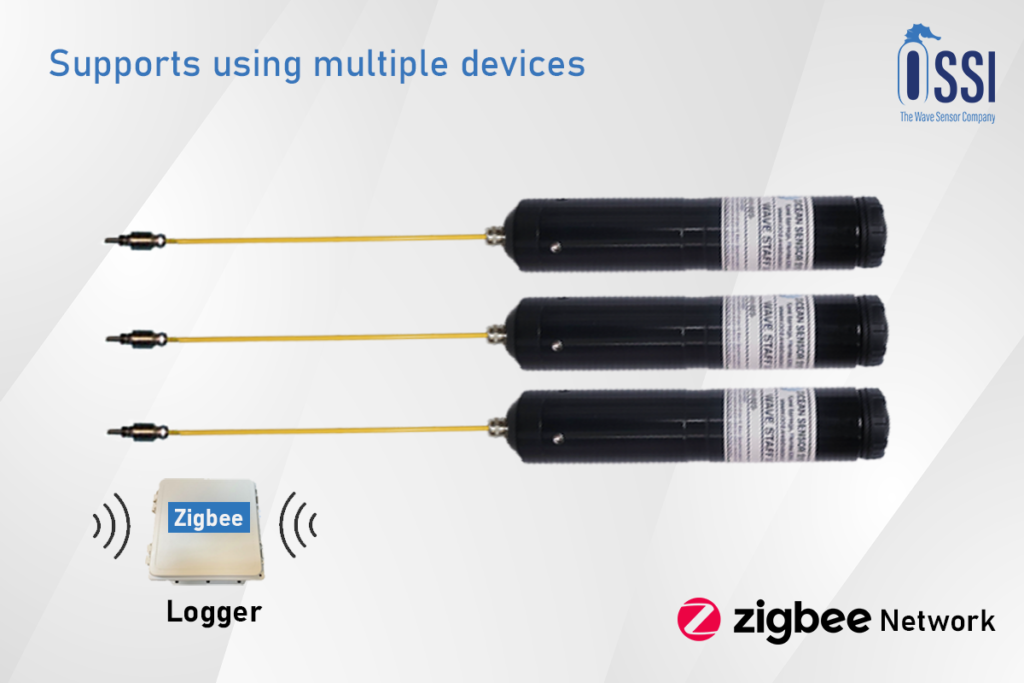

| Synchronization | Time-stamped data for synchronizing up to 8 units for directional measurements |
| Operating Principle | Measures capacitance changes as water level moves along the staff |
Data Link & Communication
| Wireless Protocol | XBee wireless network |
|---|---|
| Adapter Options |
XStick USB Adapter (OSSI-581-016): 66 ft line-of-sight range Waterproof XB to USB Adapter (OSSI-015-020/021): Up to 2-mile range with 5m cable XBee RS232 Adapter (OSSI-581-020-A/W Pro): Up to 2-mile range |
| Computer Connection | Windows USB to Serial Converter driver with User Interface Software (GUI) |
| Data Transmission | Real-time data streaming to computer interface |
Power & Battery
| Power Source | 2 C-size batteries |
|---|---|
| Battery Types | Alkaline or Nickel-Metal Hydride (NiMH) |
| Voltage Range | 1.8V (minimum) to 3.3V (maximum) |
| Battery Options |
Alkaline: Energizer EN93 (OSSI-591-014) NiMH: Energizer NH35BP-2 (OSSI-591-015) |
| Battery Life | Months of operation on two C-cell alkaline batteries |
Construction & Deployment
| Housing | Waterproof housing with solid-state electronics |
|---|---|
| Staff Types | Rod Staff or Cable Staff options |
| Mounting | Vertical orientation with staff projecting downward into fluid |
| Environmental Protection | No special protection needed from spray, rain, or sun |
| Clearance Requirements | 5-6 inches from metallic/grounded surfaces; 4-5 feet from large obstructions |
| Mounting Hardware | Available mounting kits (OSSI-015-018) with stanchions and brackets |
Operation & Sampling Modes
| Sampling Modes | Continuous sampling or burst sampling with sleep mode |
|---|---|
| Self-Grounding | Coaxial rod and cable staffs eliminate need for separate water ground wire |
| Fluid Compatibility | Any fluid compatible with glass, PTFE, stainless steel, and ABS plastic |
| Measurement Range | Must cover highest and lowest tide plus waves on the staff |
Control & Interface
| Interface Software | Staff & Sonic Product Interface Program |
|---|---|
| Version Compatibility |
Version 2.00: Known bug in "Factory Values" calibration button Version 2.01: No known software issues |
| Calibration | Factory calibrated with restoration capability |
Maintenance
| Routine Maintenance | Wipe off slime buildup with soap, water, and soft cloth |
|---|---|
| Battery Replacement | Unscrew battery holder cap on top of electronics section |
| Staff Replacement | Staff can be changed if damaged or different length needed |
| Internal Maintenance | Minimal due to sealed solid-state electronics |
Typical Applications
| Wave Measurement | Wave and wake characterization |
|---|---|
| Water Level Monitoring | Tide, pond, tank, and pool level measurement |
| Directional Studies | Multi-unit synchronized directional wave measurements |
| Research | Coastal research, environmental monitoring, and laboratory studies |
| Key Advantage | Wireless convenience with robust direct-contact sensing for long-term deployment |
Software and Manuals
User Manual
A small river named Duden flows by their place and supplies it with the necessary
User Guide
Guide
Pc Interface Software
Click on download or click on the picture to download the software
Similar Products
You might find a more suitable solution in one of these products.
Wave Gauge Blue
Trying to add add image box to your WordPress sites? No worries!
External Pressure Sensor
The OSSI-010-003 Wave Gauge is a rugged, self-powered sensor that measures liquid surface height up to 30 Hz with high accuracy. Ideal for waves, tides, and water level monitoring, it supports long-term autonomous operation with CompactFlash data logging and easy data access via RS232.
This is the heading
Do you know how to add Elementor image box with button?
Wave Staff Comparison Table
Comparison of Wave Staff III, Wave Staff XB, and Standard Wave Staff models
Product Overview
| Feature | Wave Staff III (OSSI-010-002) | Wave Staff XB (OSSI-010-025) | Wave Staff (OSSI-010-002F) |
|---|---|---|---|
| Product Generation | Third Generation | Wireless XB Series | Standard Series |
Measurement & Performance
| Sampling Rate | Up to 30 Hz | Up to 32 Hz | Up to 100 Hz |
|---|---|---|---|
| Accuracy | 0.25% of full scale (20-80% range) | Not specified | Better than 1% of full scale |
| Measurement Principle | Capacitance sensing | Capacitance sensing | Capacitance sensing |
Connectivity & Communication
| Primary Communication | Wired RS232 | Wireless XBee | Wired RS232 |
|---|---|---|---|
| Wireless Options | Not available | XBee USB/RS232 Adapters (up to 2-mile range) | Not available |
| Analog Output | 0-5V DC (when enabled) | Not specified | 0-5V DC (improved SNR when RS232 off) |
Power System
| Power Requirements | 5.5-40V DC external | 2 C-cell batteries (1.8-3.3V) | 5.5-40V DC external |
|---|---|---|---|
| Battery Life | Days with 9V battery | Months of operation with sleep modes | Days with 9V battery |
| Safety Voltage | Recommended below 16V | N/A (battery powered) | Recommended below 16V |
Physical Design & Staff
| Staff Color | Blue PTFE | Teflon insulation (color not specified) | Yellow PTFE |
|---|---|---|---|
| Grounding System | Self-grounding options (Int Gnd) | Self-grounding coaxial - no ground wire needed | External ground wire required |
| Staff Types | Coaxial Rod & Cable Staffs | Rod & Cable Staffs (0.5-20m) | Rod & Cable Staffs |
| Clearance Requirements | 6" (min 4") from metallic surfaces | 5-6" from metallic surfaces | 4" from metallic surfaces |
Installation & Mounting
| Tension Requirements | 10 lbs max (100 lbs design limit) | 2-4 lbs recommended (5 lbs max, 50 lbs design) | 5-10 lbs recommended (15 lbs max, 150 lbs design) |
|---|---|---|---|
| Mounting Options | U-bolts, clamps, optional hardware kits | Clamps, stanchions, optional hardware kits | Clamps, stanchions, optional hardware kits |
| Housing | Waterproof, 2" diameter black plastic | Waterproof black electronics housing | Waterproof black electronics housing |
Configuration & Software
| Interface Software | Water Level Sensor Interface Software | Staff & Sonic Product Interface Program | Staff and Sonic Products Interface Program |
|---|---|---|---|
| Default Sample Rate | 10 Hz | Not specified | 20 Hz |
| Software Issues | No known issues | Version 2.00 has calibration bug | No known issues |
Maintenance & Calibration
| Maintenance | Wipe slime off blue PTFE staff | Wipe slime off case and staff | Wipe slime off yellow PTFE staff |
|---|---|---|---|
| Staff Replacement | Large blue hand nut (hand tight) | 4 screws, inline connector, cable grip | Cord grip cap and plastic insert |
| Calibration Required | After staff replacement | After staff replacement | After staff replacement |
Key Selection Guide:
- Wave Staff III: Highest accuracy (0.25%), self-grounding options, ideal for precision applications
- Wave Staff XB: Wireless operation, battery powered, perfect for remote or difficult-to-wire locations
- Wave Staff: Highest sampling rate (100Hz), proven reliability, best for high-frequency wave measurements
- All models feature: Interchangeable staffs, waterproof construction, capacitance-based measurement
